Seidio Treo 680 & 750 Extended Battery Review
By: Tim CarrollAugust 28, 2007
If you were asked to name a problem endemic to today’s omniscient mobile devices, there’s a pretty good chance that you’d nominate “battery life”. Modern smartphones are being used for more and more of our daily computing needs, and with manufacturers striving to satisfy the market’s craving for ever-thinner designs it’s more often than not that the battery is first thing to buckle. Such was the case with Palm’s latest GSM smartphones: the Treo 680 and Treo 750 both debuted with... uh... adequate... 1200mAh batteries – a 33% cut from their fatter predecessors.
Sure, the smaller battery wasn’t all bad: it made the notoriously hefty Treo much more comfortable to hold, and the difference was definitely noticed in the pants. (Pocket!) But as the day wore on, power users found themselves watching that rapidly-depleting battery meter with an inverse amount of panic. Now, finally, Seidio have released a high-capacity 1600mAh battery that boosts the Treo’s stamina without adding an ungainly hunchback. How does it perform? Grab your safety goggles, don your lab coat and watch out for the gold-plated Yankowski-bots - they're just for reassurance, folks - as we take a tour of PIC’s top-secret testing range...
Now 100% Evisceration-Free!
In a nice change from the impenetrable heat-sealed packaging that is typical for accessories nowadays, the Seidio Extended Battery comes in a small plastic container that pops open without any assistance from knives, scissors or your teeth, and doesn’t leave any of those wicked jagged edges that are just waiting to slice your hand open. Inside are the battery and a scrap of paper with charging instructions and warranty info. Refreshingly or annoyingly, depending on your English abilities, in one language. It’d be nice if all accessory packaging was this economical.
The battery itself comes in a cheap-looking casing that doesn’t look half as nice (well, as nice as batteries can look, anyway) as the curvy enclosure of the stock battery. The label on mine wasn’t properly stuck down and curls up at the edges. (See photos for the full horror show). Fortunately, it’s not like it’s going to be staring you in the face all day, unless you’re operating your Treo back-to-front, which would be both foolish and impractical.
The instructions advise you to allow 8 hours for initial charging of the battery, although mine got to a full charge in two. Performance “will increase after 5-6 full charges”, according to the manual post-it.
Tighter than a duck’s rear

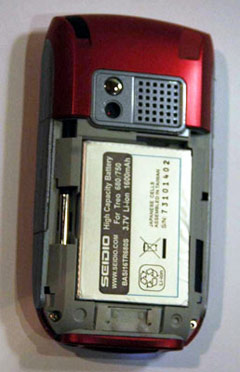

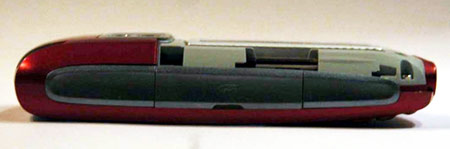

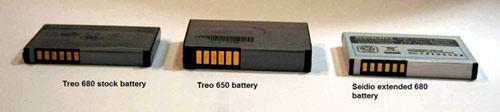

Seidio have done a great job slimming down all this power in order to shoehorn it into the 680’s shallower-than-Paris-Hilton battery slot. It looks barely bigger than the stock battery, and only protrudes ever-so-slightly out of the compartment, as you can see in the photos. It’s still a very tight fit, both for the slot and the cover. After I’d installed it I was actually worried that the cover wasn’t fitting on and I was about to break it – you really have to exert a lot more pressure than usual to get it to click back in place. The biggest irritant: said tight fit makes Palm’s new “tilt-the-battery-to-reset” technique even more annoying than usual, as getting the cover off and levering the battery out of the compartment will sometimes usually require the Jaws of Life. (Please bring back the reset button, Palm.)
Post-installation you’ll notice a small, but substantial increase in device weight. It’s quite surprising how much difference such a miniscule gain makes: it weighs down your pocket more and isn’t as comfortable to hold for long periods of time.
But on to the real question: how much of a difference do those extra 400 milliamp-hours make?
A Battery Of Tests*
(Please note: these tests are hardly scientific and probably riddled with mathematical errors that could tear a hole in the space-time continuum if they were spoken aloud. Take with a shaker of salt.)
After I’d used the battery for a week with near-full daily charges, I figured it was sufficiently broken-in to subject it to a series of consumption tests. First on the agenda was a standby test: how much longer are you going to get out of the extended battery when it’s doing nothing? So, I left my 680 turned on overnight - once with each battery - and recorded the results when I woke up approximately six hours later. Give or take a yawn or ten...
|
Activity |
Stock Battery |
Extended Battery |
|
Start at full charge |
100% |
100% |
|
After six hours of standby, with Bluetooth, Beam Receive and background programs off: |
93% |
96% |
|
Which means that you’ll get an estimated: |
84 hours of standby time |
150 hours of standby time |
Nearly double the standby time? Yes, that’s an impressive way of putting it, if you ask me. And I wrote it, so I should know. But I digress; I should point out that these results may vary wildly from user to user, depending on a whole bunch of things ranging from cellular reception (a low signal gulps more power), to whether you’ve got Bluetooth on, and whether you’re running any kind of background programs. We can clearly see, however, that the extended battery wipes the floor with the stock version.
(Joke of the day: Palm claim 300 hours standby time on the stock battery. Boom-tish!)
Okay, so enough about standby power, which isn’t that interesting anyway since most of us get these devices so we can actually, y’know, use them. How does the Seidio battery stand up over a period of heavy usage? For my second and final experiment, I subjected both batteries to a gruelling three-hour testing regime that sucked them down like electricity was being banned at midnight. I then extrapolated how many hours of heavy use you’re likely to get out of each:
* bad pun intended
|
Activity |
Stock Battery |
Extended Battery |
|
Start at full charge |
100% |
100% |
|
After one hour of wireless music playback w/ pTunes 4 and Softick Audio Gateway 1.13: |
77% (consumed 23% of capacity) |
82% (consumed 18% of capacity) |
|
After 30 minutes of video playback w/ Coreplayer: |
64% ( -13% ) |
73% ( -9% ) |
|
After 30 minutes of intensive web browsing w/ Blazer: |
49% ( -15% ) |
63% ( -10% ) |
|
After a 30 minute phone call: |
36% ( -13% ) |
55% ( -8% ) |
|
After a 15-message SMS chat: |
32% ( -4% ) |
52% ( -3% ) |
|
After sending five emails with attachments, and then downloading those emails: |
27% ( -5% ) |
49% ( -3% ) |
|
After a Bluetooth Hotsync: |
25% ( -2% ) |
48% ( -1% ) |
|
Total drain after approximately 3 hours of heavy use: |
- 75% |
- 52% |
|
Which means you’ll get an estimated: |
4 hours of heavy usage |
6 hours of heavy usage |
These tests would have gone on longer, but six hours of fiddling with my phone was tedious enough. And I was seeing the 4.30pm session of Die Hard 4, which was good, but not great, IMO. At least they didn’t completely screw up the series. But what was I talking about? Oh yes: batteries. What’s the final verdict?
Episode IV: A New Option
When the Treo 680 was released, it was so depressing to get an upgrade that corrected nearly all the flaws of the Treo 650 – well, except that 2.5mm jack – but required such a huge compromise in power. It marred an otherwise excellent smartphone. Our options were limited: you could either cut down your usage – which, for some, is like trying to give up going to the bathroom; you could carry a spare battery or charger – inconvenient, unless you carry a purse European carryall; or you could replace it with a bigger battery & cover, The Rumpshaker – which ruined the lovely new form factor and didn’t fit your cases to boot. Palm themselves tacitly acknowledged the issue, with the new Treo 755p featuring a beefier 1600mAh battery.
Now there’s a fourth option: upgrade it. With no unsightly rump and a forgivable increase in weight, you’ll be over the change in no time and should greatly appreciate the extra confidence that knowing your phone will last the day (and night) can give you. The price is unfortunately high – double the price of the stock battery – but if you’re a heavy user then it’s worth twice its weight in gold. It’s not a spectacular increase by any measure. But it’s very welcome.
My Rating:
3.5 / 5
The Seidio 1600mAh Extended Battery is available now for $49.95 USD. It is compatible with the Treo 680 and Treo 750, and was reviewed with a 680.
